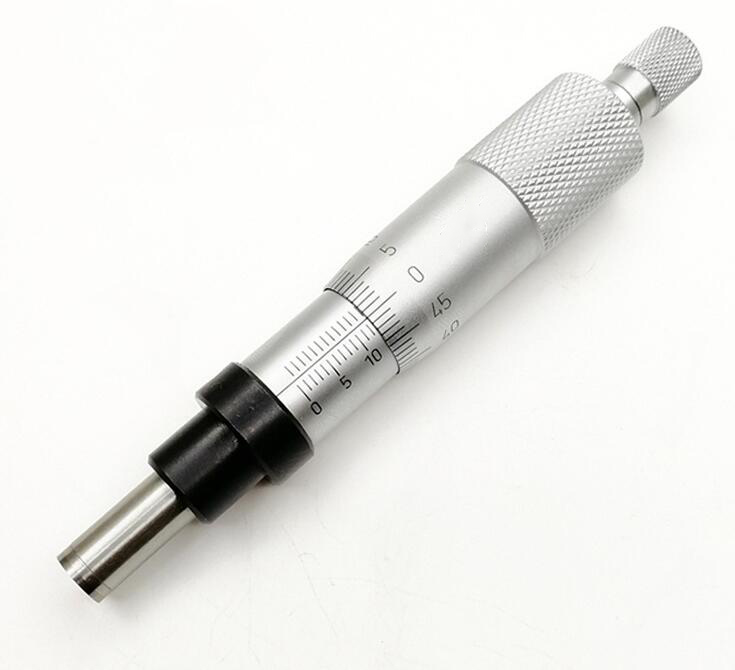

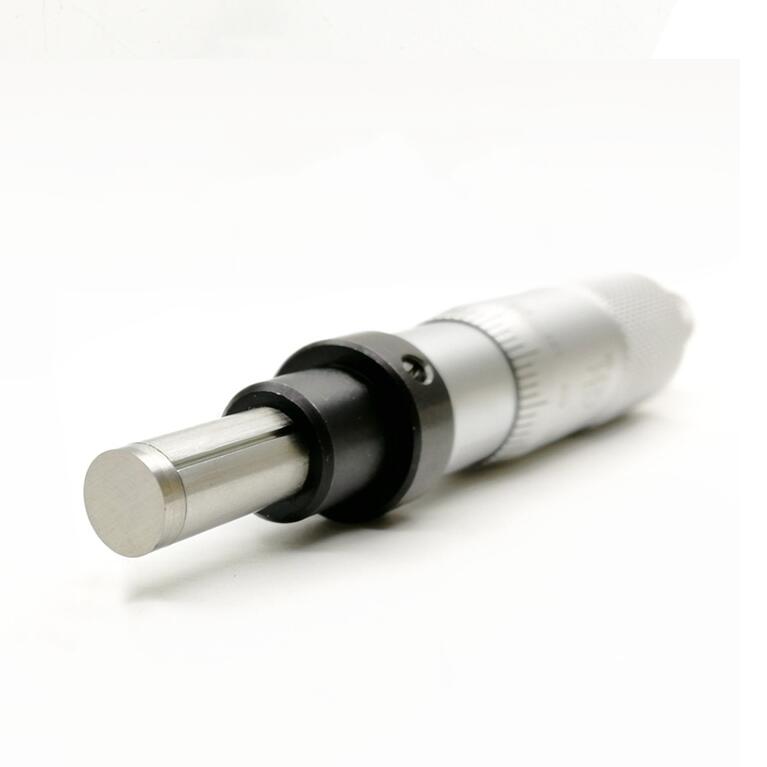

0-25mm Mechanical micrometer head
The micrometer head is a tool used to generate displacement and indicate the amount of displacement in experiments. Generally, before using the micrometer head, first rotate the micrometer cylinder to 10mm (in order to reserve the allowance for the forward and backward displacement of the measuring rod axis)
Accuracy: 0.003mm
Resolution: 0.01mm
Order NO | Range | Spindle Tip | type |
MD-421401 | 0-25mm | Flat(Carbide) | Ratchet stop |
MD-421402 | 0-25mm | Spherical | Ratchet stop |
Order NO | Range | Spindle Tip | tyep |
MD-421403 | 0-25mm | Flat(Carbide) | friction thimble |
MD-421404 | 0-25mm | Spherical | friction thimble |
Order NO | Range | Spindle Tip | type |
MD-421405 | 0-25mm | Flat(Carbide) | Ratchet friction thimble |
MD-421406 | 0-25mm | Spherical | Ratchet friction thimble |
Resolution: 0.002mm
Order NO | Range | Spindle Tip | type |
MD-441401 | 0-25mm | Flat(Carbide) | Ratchet stop |
MD-441402 | 0-25mm | Spherical | Ratchet stop |
Order NO | Range | Spindle Tip | tyep |
MD-441403 | 0-25mm | Flat(Carbide) | friction thimble |
MD-441404 | 0-25mm | Spherical | friction thimble |
Order NO | Range | Spindle Tip | type |
MD-441405 | 0-25mm | Flat(Carbide) | Ratchet friction thimble |
MD-441406 | 0-25mm | Spherical | Ratchet friction thimble |
