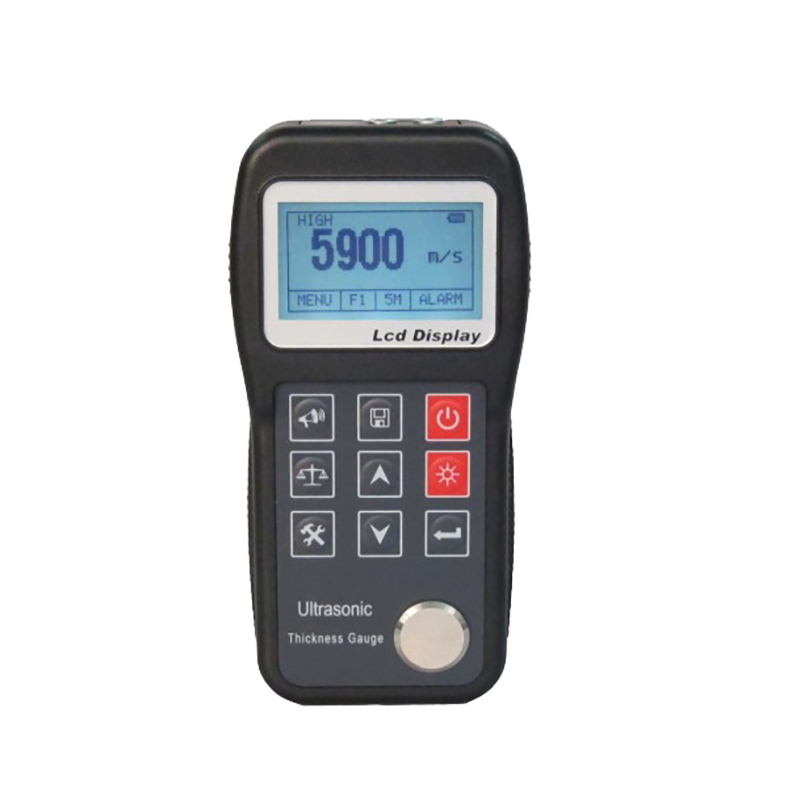

0.75-300mm ultrasonic thickness tester metal ultrasonic thickness meter
Features:
*Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
*Can be equipped with a variety of different frequency, chip size, double crystal probe use.
* Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
* Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.
* With functions of coupling status alerts.
*LED backlight display, convenient to use in dark environment.
*The battery indicator function, can real-time display the battery remaining power.
*With automatic power soff.
* Small, portable, high reliability, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.
*The background data processing function; PC communication function; printing support.
*Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
*Can be equipped with a variety of different frequency, chip size, double crystal probe use.
* Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
* Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.
* With functions of coupling status alerts.
*LED backlight display, convenient to use in dark environment.
*The battery indicator function, can real-time display the battery remaining power.
*With automatic power soff.
* Small, portable, high reliability, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.
*The background data processing function; PC communication function; printing support.
Specifications:
| Measuring range: | 0.75mm~300.0mm(0.03inch~11.8inch) |
| Units: | Metric/Imperial unit seletable |
| Display resolution: |
0.01mm or 0.1mm(lower than 100.0mm)
0.1mm(more than 99.99mm)
|
| Accuracy: | ±(0.5%Thickness+0.04)mm,depends on Materials and conditions |
| Data Memory: |
5 files(up to 100 values for each file)of stored values
5 Sound Velocity of stored values
|
| Power Source: | 2pcs 1.5V AA size,batteries. 250 hours typical operating time(LED backlight off) |
| Outline Dimensions: | 150mm*74mm*32mm |
| Workpiece Surface Temperature: | – 10 ~ 60 degree |
| The minimum thickness value capture capacity | With a minimum thickness value capture capacity |
| Standard configuration | KT320 host, 5MHz probe, 4 mm steel calibration block, coupling agent, 2 batteries (non – Aviation) |
| Measurement Cycle | 4 times/SEC, scanning of single point measurement model 20 times per second. |
| Weight: | 238 g |
| Power Source: | Type AA alkaline battery 1.5 V (2) |
| Optional Attachments: | 2 MHZ, 7 MHZ and 5 MHZ (high temperature) |
