0.75-400mm ultrasonic thickness tester gauge meter
Specification:
Range: 0.75-400mm
Display accuracy: 0.01mm
Measurement error “±（0.1+1%H）mm
（H is the thickness of the measured object)
Material sound speed 1000-9999m/s
LCD screen: 2.3 inch large color screen display
Calibration function: instrument calibration and sound velocity calibration
Data storage function Each group can store 200 data, a total of 10 groups can store 2000 data
Power display: Yes
Shutdown mode: manual/automatic (automatic shutdown after 5 minutes without operation)
External dimensions of the host: 130mm*70mm*26mm
Power supply Three (No. 7) alkaline batteries
Working temperature 0℃-50℃
Working humidity: 20%RH—90%RH
Weight: 125g (without probe and battery)

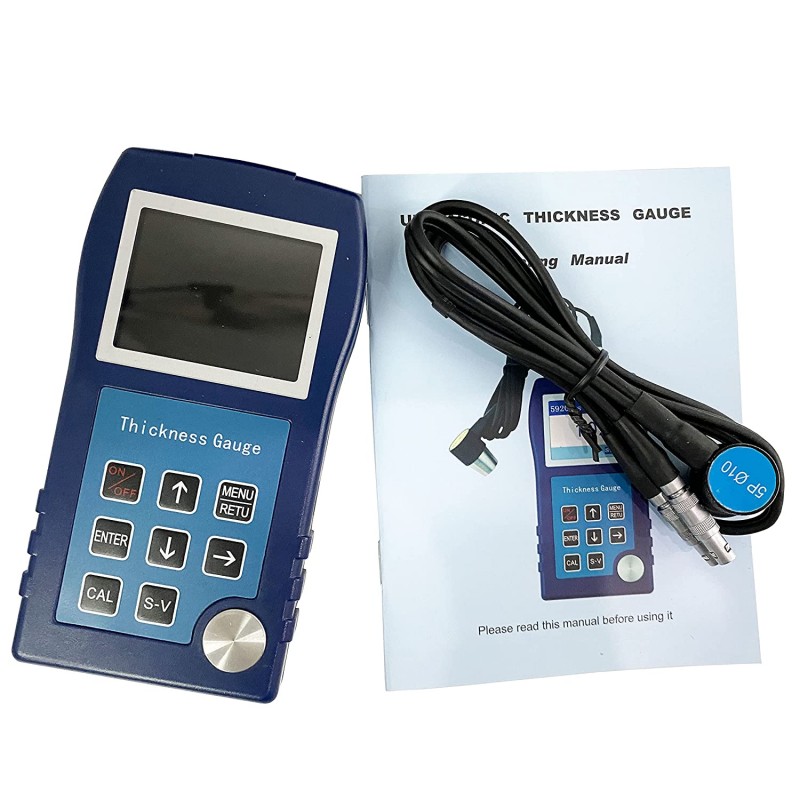

Configuration list:
1: Host 1
2: Standard probe (5P, φ10) 1
3: Calibration piece 1 piece
4: Coupling agent 1
5: 1 manual
6: 1 certificate of conformity

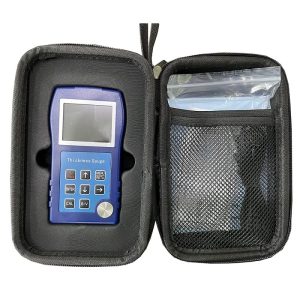

7: ABS instrument bag 1
Optional accessories:
8: Microcrystalline probe: 7P, φ6 optional (not in the package)
9: High temperature probe: 2.5P, φ12 optional(not in the package)
