Automatic dormancy portable surface roughness tester with APP bluetooth
Main Feature:
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours.
*Real-time clock settings and display, convenient data recording and storage.
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;
*Can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
*Optional bluetooth function.
*High price performance
*Bluetooth function

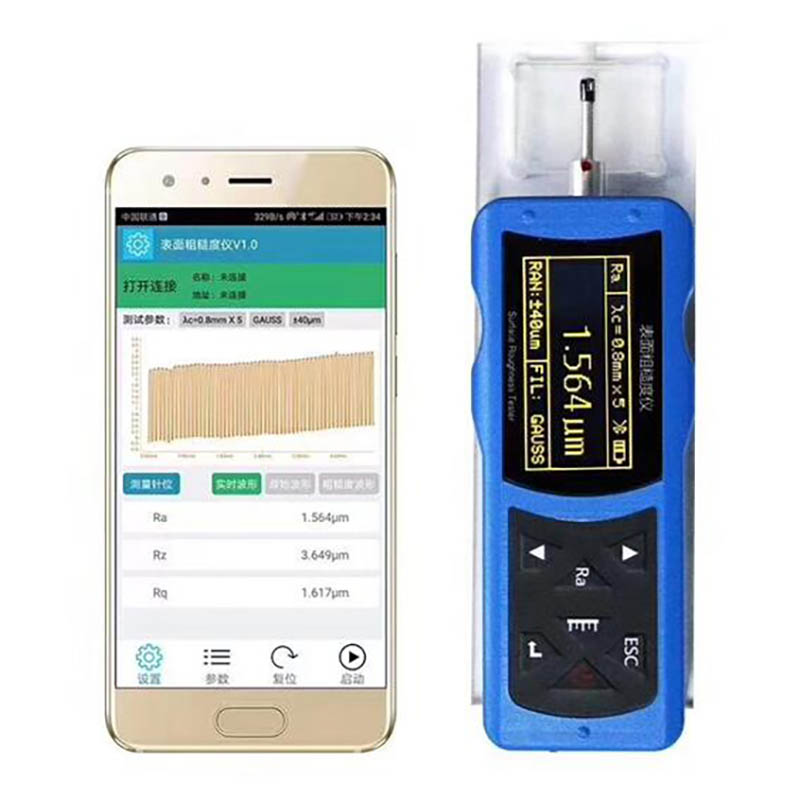

*Can acquire, manage data by APP.
Specification:
| Testing parameters | Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx; |
| Measuring range (um) | Ra: 0.005-16.000
Rz: 0.02-160.00 |
| Sample length (mm) | 0.25, 0.80, 2.50 |
| Evaluation length(mm) | (1-5)L |
| Maximum drive stroke | 17.5mm/0.7inch |
| Indication accuracy | 0.001 |
| Indication error | ±(7-10)% |
| Variability | <6% |
| Data Storage | 100 groups |
| Power | Rechargeable li-battery |
| Working temperature | -20℃~40℃ |
| Relative humidity | <90% |
| Size | 158mmx63.5mmx46mm |
| Weight of Host | 0.3kg |

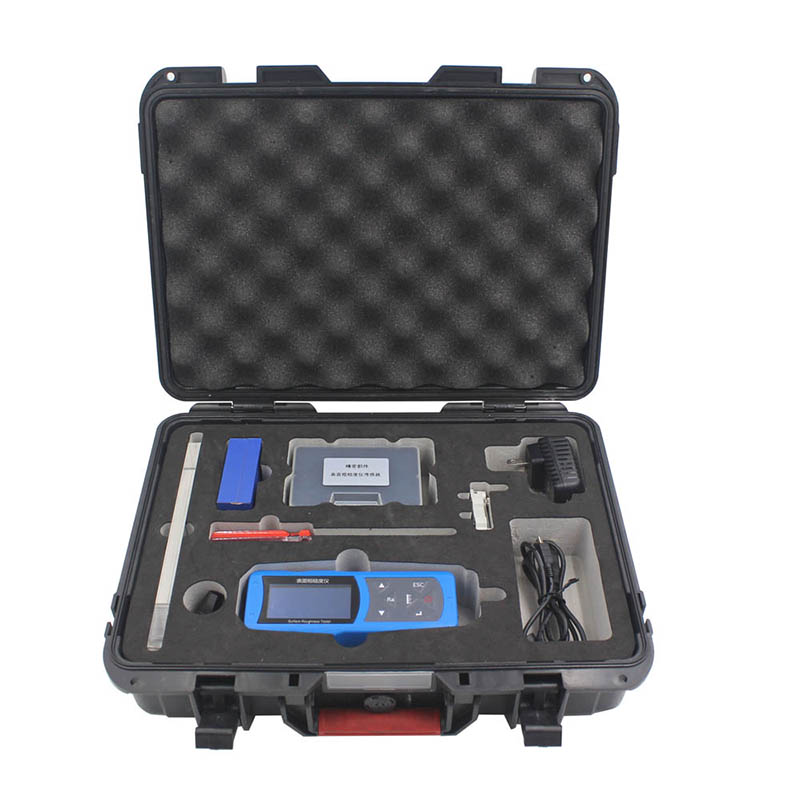

Standard package:
1 ROTE-4632 1
2 Standard Sensor 1
3 Calibration block and bracket 1
4 Bracket 1
5 Charger 1
6 Adjustable support 1
7 Operating manual 1
8 Warranty card 1
9 Certificate of approval 1
10 Instrument case 1
Optional accessories:
1.Extension rod
2. Right angle measuring mechanism
3. standard sensor
4. Small hole sensor, cylindrical plane inner surface of hole less than 2mm, depth: more than 9mm
5.curved sensor
6. Sensor for deep groove.
7. Metal working platform(stand)
8. Marble working standard
9. Roughness comparison block
10 Mini Printer.

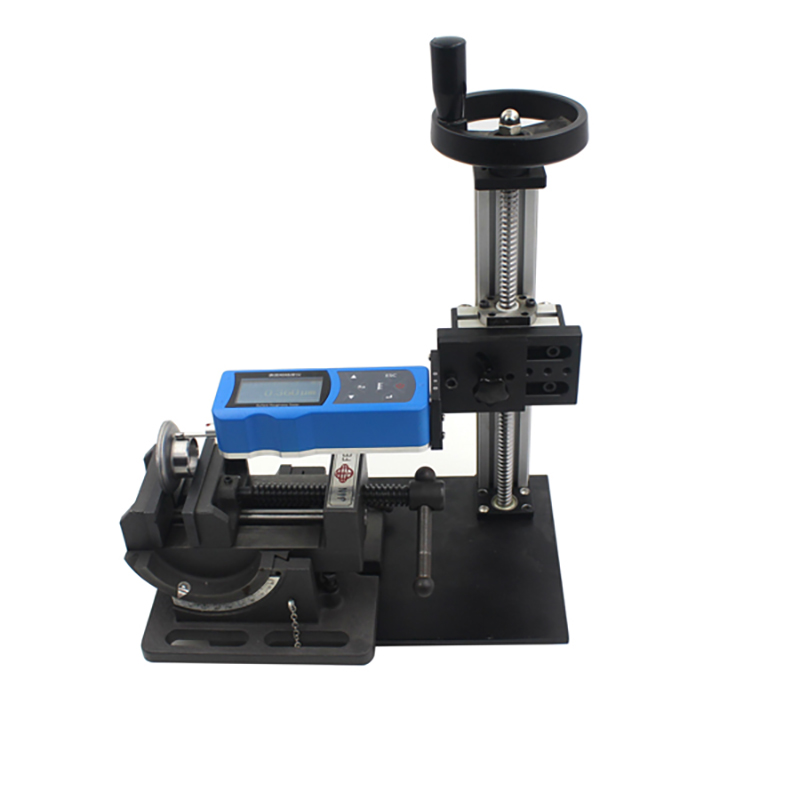

Note:
Marble stand is only for reference. It is not in the package
