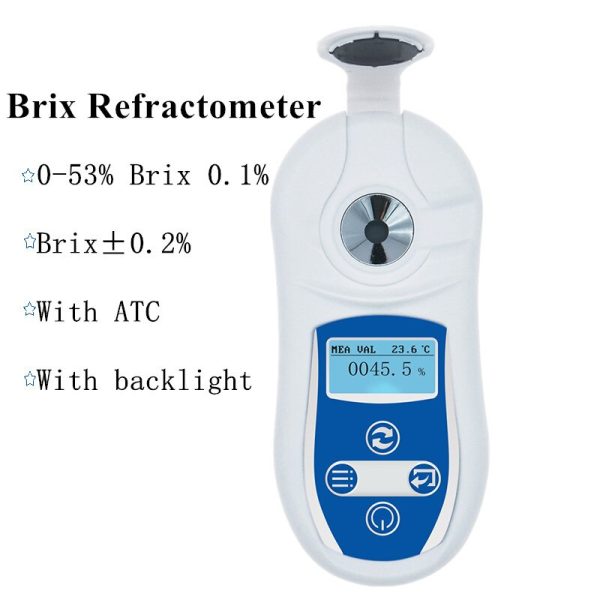

Digital portable brix 0~53% refractometer for fruit sugar brix meter scale
Part No.: PAL-102
Feature:
1. Widely used in food, beverage, fruit sugar content determination, crop sugar content determination and other fields.
2. Built in high quality chip, high measurement accuracy, sensitive response, fast measurement speed, long-term use.
3. Equipped with high transmittance refraction prism, high precision optical electronic instrument, one thousandth resolution.
4. Support temperature compensation function, automatic calibration, not affected by the environment, automatic elimination of measurement errors.
5. It is equipped with high-definition backlight display, supporting three kinds of data display, clear and intuitive, and more convenient to use.
6. The product needs to be measured after the liquid is mixed evenly. The operation method is simple and practical.
PAL-102 (blue)
Accuracy: Brix±0.2%
Temperature:±1℃
Resolving Power:Brix:0.1%
Temperature:0.1℃
Measuring Range:Brix:0.0~53.0%
Temperature:10~100℃
Use temperature:10-40℃
Batteries:2*AAA 1.5V Batteries(not include )
Measurement Time:3 seconds
Size:130*55*25mm
Net weight:about 100g.

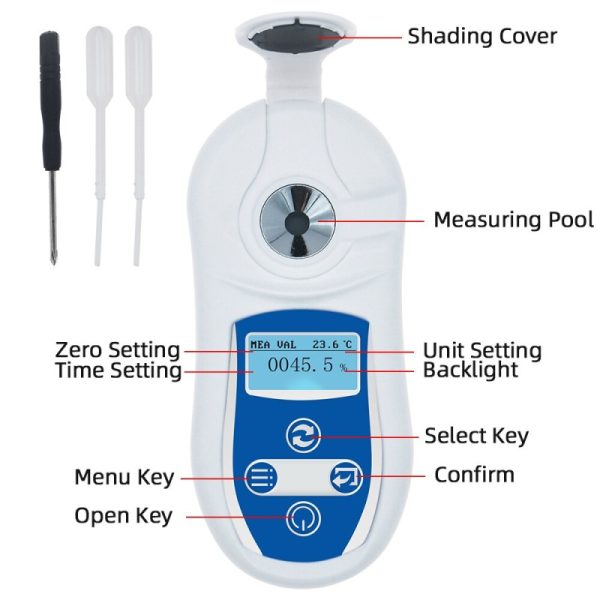

1.press open key, switch machine,After the boot, it will directly enter the waiting measurement interface”Enter To MEA”.
2.boot mode,press menu key, enter menu mode
3.Menu options are zero correction,temperature unit selection,automatic shutdown time settings,backlight on and off settings.
4.press the toggle button to change the options and press the confirmation button to enter the menu option.
5.after entering the corresponding menu option,press the toggle button to switch the options,and press the confirmation key to confirm the option.Now go back to the main menu interface.
6.press the menu button again to exit the menu interface and return to the measurement waiting interface.
