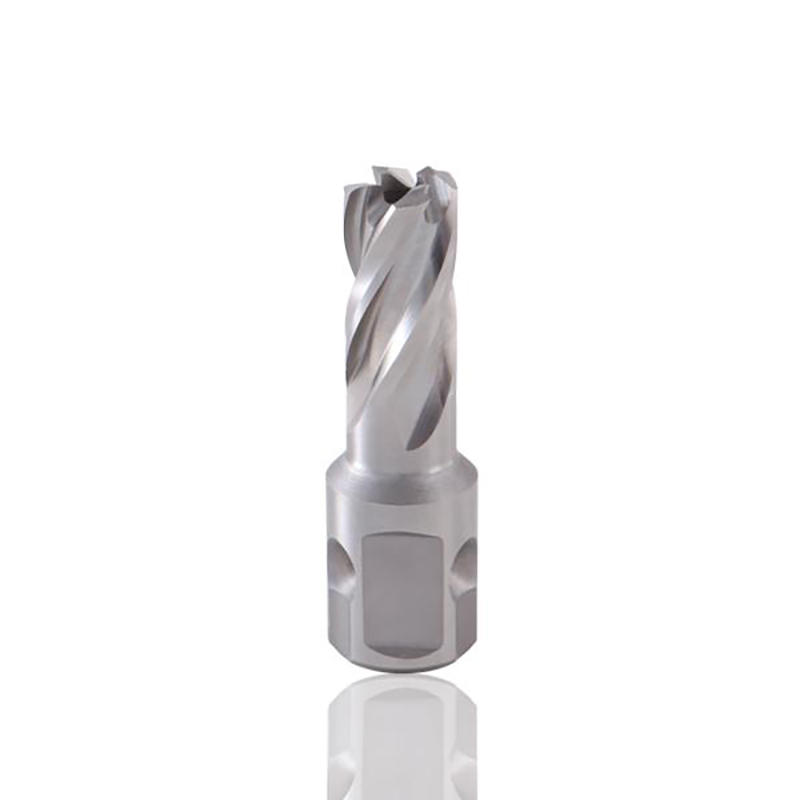

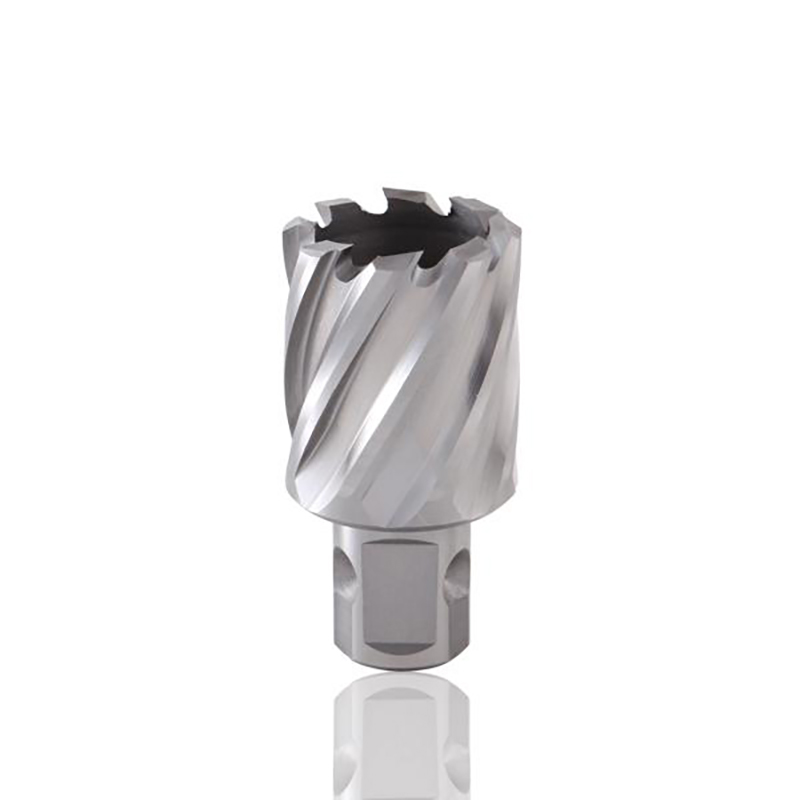

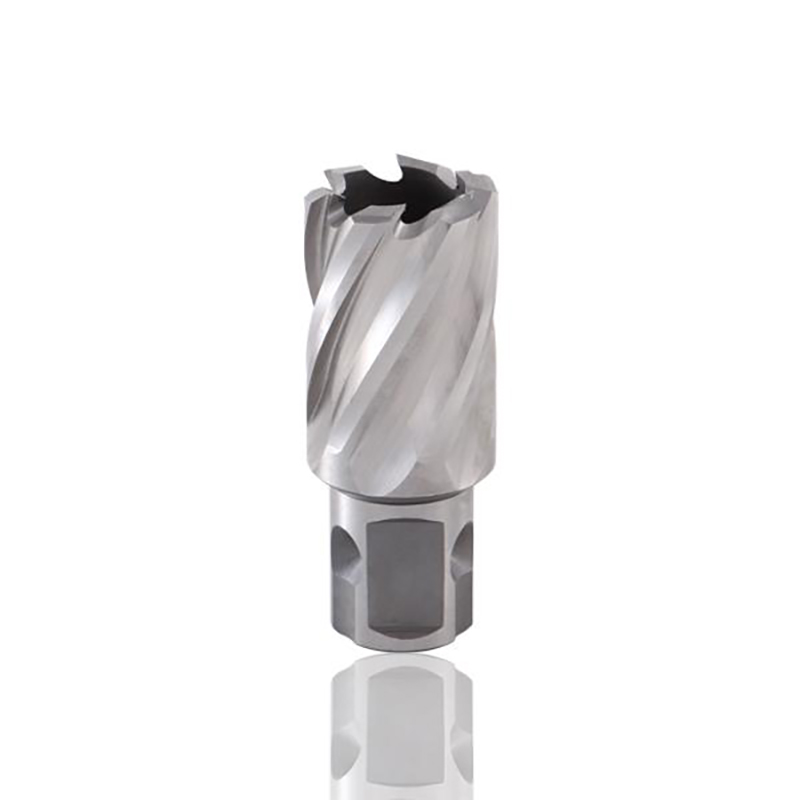

HSS annular cutter set 25mm depth hougen drill bits slugger bit
The annular cutter is known as hougen drill bits, slugger bit, annular hole cutter,magnetic drill cutters, rotabroach cutters. It is widely used in construction, engineering, mechanical processing.
Specification:
Material: HSS
supplier: ROKTOOLS
Diameter: 12-60mm
Max cutting depth: 25mm
Diameter (mm) | Shank Diameter (mm) | Cutting depth (mm) |
12 | 19.05 | 25 |
13 | 19.05 | 25 |
14 | 19.05 | 25 |
15 | 19.05 | 25 |
16 | 19.05 | 25 |
17 | 19.05 | 25 |
18 | 19.05 | 25 |
19 | 19.05 | 25 |
20 | 19.05 | 25 |
21 | 19.05 | 25 |
22 | 19.05 | 25 |
23 | 19.05 | 25 |
24 | 19.05 | 25 |
25 | 19.05 | 25 |
26 | 19.05 | 25 |
27 | 19.05 | 25 |
28 | 19.05 | 25 |
29 | 19.05 | 25 |
30 | 19.05 | 25 |
31 | 19.05 | 25 |
32 | 19.05 | 25 |
33 | 19.05 | 25 |
34 | 19.05 | 25 |
35 | 19.05 | 25 |
36 | 19.05 | 25 |
37 | 19.05 | 25 |
38 | 19.05 | 25 |
39 | 19.05 | 25 |
40 | 19.05 | 25 |
41 | 19.05 | 25 |
42 | 19.05 | 25 |
43 | 19.05 | 25 |
44 | 19.05 | 25 |
45 | 19.05 | 25 |
46 | 19.05 | 25 |
47 | 19.05 | 25 |
48 | 19.05 | 25 |
49 | 19.05 | 25 |
50 | 19.05 | 25 |
51 | 19.05 | 25 |
52 | 19.05 | 25 |
53 | 19.05 | 25 |
54 | 19.05 | 25 |
55 | 19.05 | 25 |
56 | 19.05 | 25 |
57 | 19.05 | 25 |
58 | 19.05 | 25 |
59 | 19.05 | 25 |
60 | 19.05 | 25 |

annular cutter
