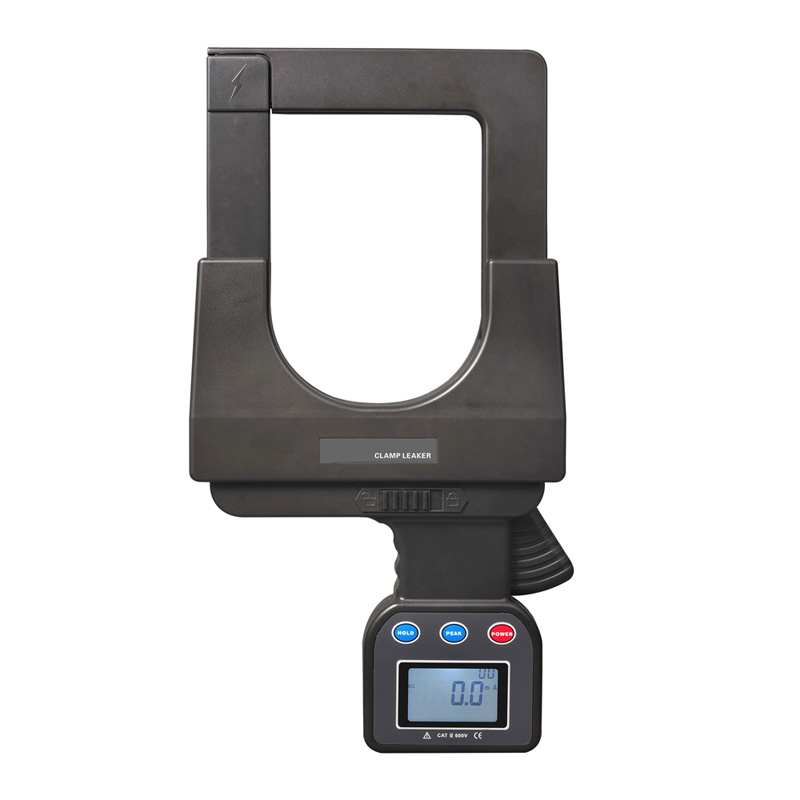

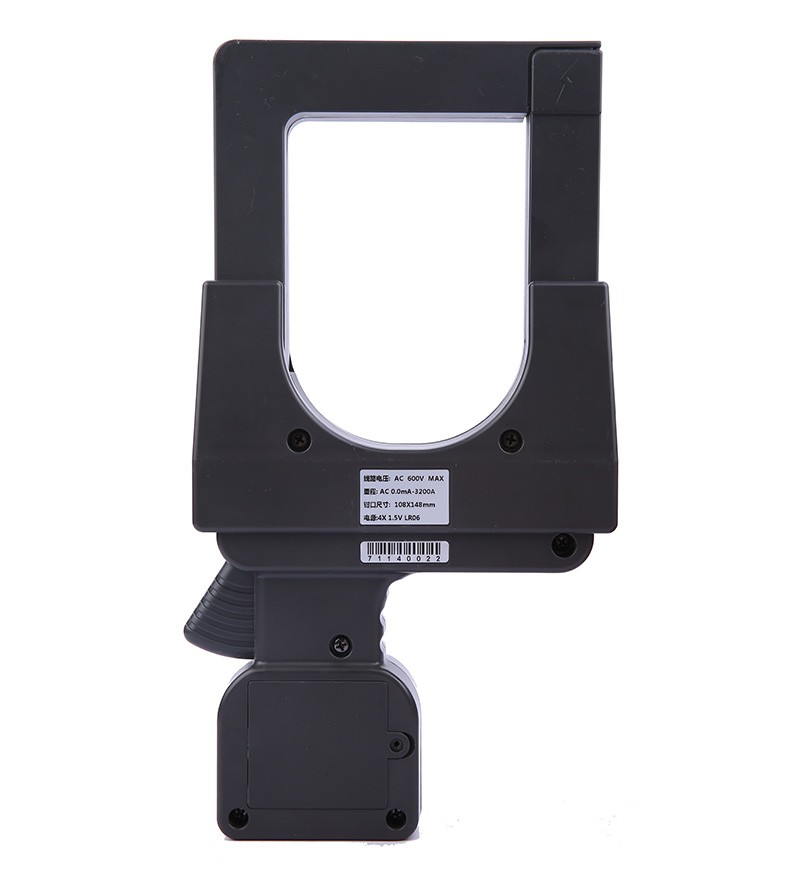

Digital 3200A Leakage Clamp Multimeter Ammeter Meter
Features:
-With Backlight, Inspector can read data in dim and dark area.
-Over flow Indicator
-4 digital LCD display, length 47mm×width 28.5mm
-Low battery Indicator
-Fast Sample rate
-99 Data storeage
-108mm×148mm Clamp size
Function:
-Measure Leakage current
-Measure Current
-Measure voltage
Technical Specification

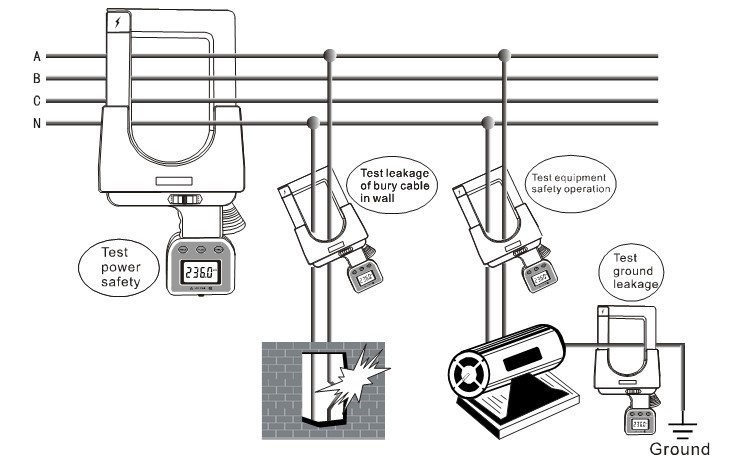

Measure AC leakage current, big current (particularly suitable for leakage current measurement of cable and transformer earth steel)
Clamp CT, integral mode
108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires)
AC 0.0mA-3200A
| Function | Measure AC leakage current, big current (particularly suitable for leakage current measurement of cable and transformer earth steel) |
| Power | 6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours) |
| Test Mode | Clamp CT, integral mode |
| Clamp Size | 108mm×148mm (can clamp electric cable of 108mm diameter, or 160mm×4mm flat cable and steel earth wires) |
| Measurement Range | AC 0.0mA-3200A |
| Resolution | AC 0.1mA |
|
Measurement Accuracy
(23℃±3℃, below 70%RH, measured wire at the center of the clamp)
|
AC 0.0mA～499A ±2%±5dgt |
| AC 500A～999A ±3%±5dgt | |
| AC 1000A～2999A ±4%±5dgt | |
| AC 3000A～4000A ±5%±5dgt | |
| Measured Wire Position | Measured wire at approximately the geometric center of the clamp |
| Data Storage | 99 sets, “FULLthe memory is full ” symbol indicate |
| RS232 Interface | With RS232 interface, download data to computer for analysis and management |
| Communication Wire | RS232 communication wire, 1.8m |
| Frequency | 50Hz ,60Hz automatic identification |
| Gear Shift | Automatic shift |
| Sample Rate | About 2 times/second |
| Line Voltage | Below AC 600V line measurement |
| Display Mode | 4 digital LCD display, length 47mm×width 28.5mm |
| Meter Size | Length 350mm × Width 180mm × Height 55mm |
| Backlight | Suitable for dim places |
| Data Hold | “HOLD symbol appears” |
| Overflow | “OL symbol appears” |
| Automatic Shutdown | Automatically shutdown about 5 minutes after power on to reduce battery consumption |
| Voltage Detection | Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 5.2V. |
| Weight of Meter | 1.5kg (with batteries) |
| Weight of Package | 3kg (with accessories) |
| Working Temperature and Humidity | -10℃-40℃; 80%rh |
| Storage Temperature and Humidity | -10℃-60℃; below 70%rh |
| Insulation strength | AC 2Kv/rms(between core and shell) |
| Safety Specifications | IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V) |
| Accessories | Meter: 1 PC; RS232 Data Line: 1 PC; Disk: 1 PC; Battery (LR6): 4PCS; Meter Box: 1 PC |
