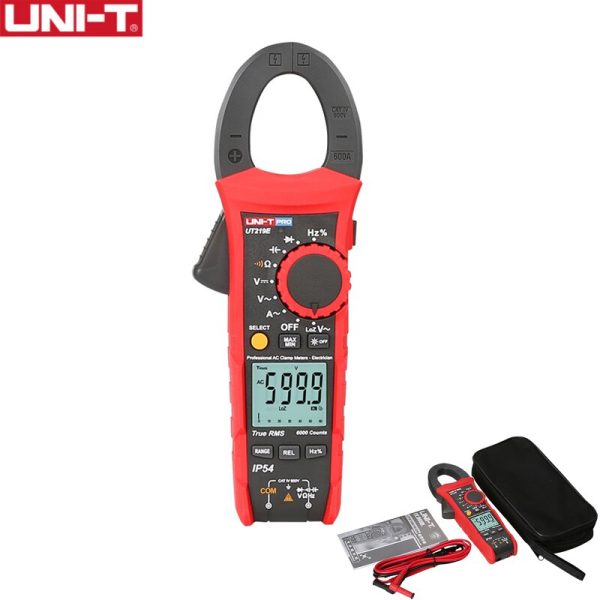

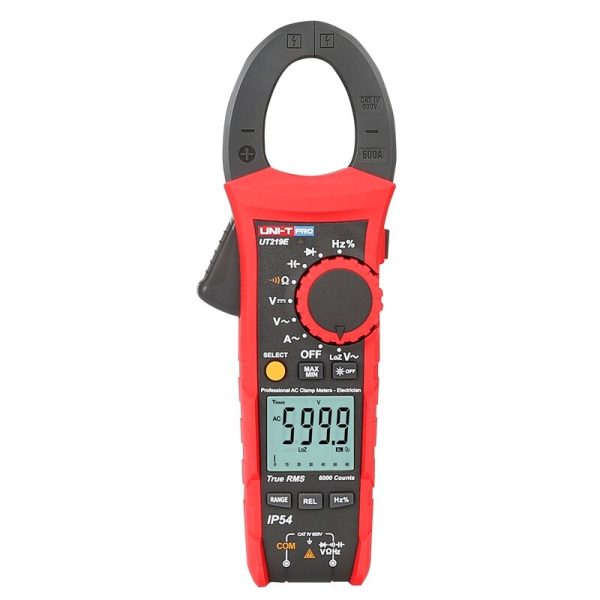

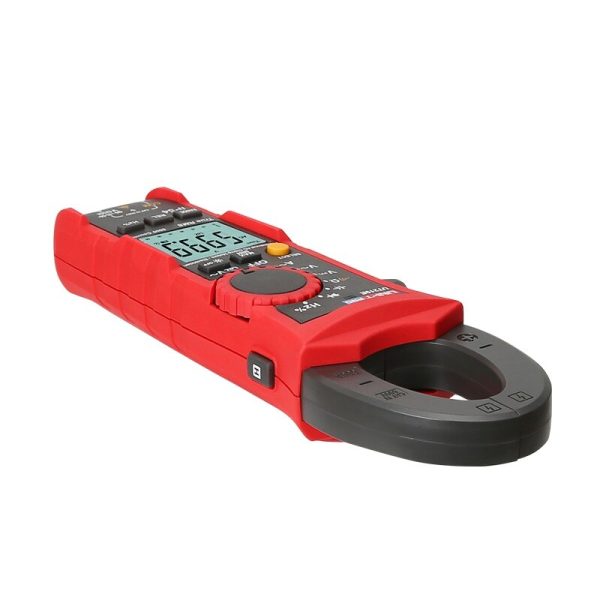

UT219E Current Voltage Tester True RMS Clamp Ammeter Frequency Meter
- DIY Supplies: ELECTRICAL
- Measuring Capacitance Range: 60.00nF-60.00mF
- Model Number: UT219E
- Dimensions: 235*83*47mm
- Measuring Voltage Range: 6.000V-600.0V
- Measuring Resistance Range: 600.0ohm-60.00Mohm
- Weight: 338g
- Measuring Current Range: AC 600.0A
- Display Type: Digital Only
Features:
1. 2m drop proof, IP54, CAT IV 600V
2. Large 6000-digit LCD backlight (auto) display
3. True RMS
4. LoZ voltage test, for ghost voltage measurement
5. MAX/MIN/REL testing mode, data hold, excluding the test lead interference of resistance measurement
| Specifications | ||||
| Model | UT219E | UT219M | UT219DS | |
| AC current (A) | 60A/600A | ±(1.8%+6) | ±(1.8%+6) | ±(1.8%+6) |
| Inrush current (A) | 60A/600A | ±10% | ||
| DC current (A) | 60A/600A | ±(1.8%+6) | ||
| AC+DC current (A) | 60A/600A | ±(3.0%+6) | ||
| AC voltage (V) | 6V/60V/600V | ±(1.0%+6) | ±(1.0%+6) | ±(1.0%+6) |
| LoZ ACV | 600V | ±(2.5%+6) | ±(2.5%+6) | ±(2.5%+6) |
| DC voltage (V) | 600mV/6V/60V/600V | ±(0.6%+3) | ||
| 6V/60V/600V | ±(0.6%+3) | ±(0.6%+3) | ||
| AC+DC voltage (V) | 6V/60V/600V | ±(2.0%+6) | ||
| DC current (μA) | 2000μA | ±(0.9%+6) | ±(0.9%+6) | |
| AC current (μA) | 2000μA | ±(1.5%+6) | ±(1.5%+6) | |
| Resistance (Ω) | 60Ω | ±(1.5%+3) | ||
| 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1.0%+3) | ±(1.0%+3) | ±(1.0%+3) | |
| Capacitance | 6nF | ±(4.0%+7) | ||
| 60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±(4.0%+7) | ±(4.0%+7) | ±(4.0%+7) | |
| Frequency | 60Hz ~ 10MHz | ±(0.1%+6) | ||
| 60Hz ~ 40MHz | ±(0.1%+6) | ±(0.1%+6) | ||
| Duty ratio | 0.1% ~ 99.9% | ±(2.6%+7) | ±(2.6%+7) | |
| Temperature (℃) | -40~1000℃ | ±(2.0%+5℃) | ±(2.0%+5℃) | |
| Temperature (℉) | -40~1832℉ | ±(2.0%+9℉) | ±(2.0%+9℉) | |
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Auto/Manual range | YES | YES | YES | |
| Jaw size | 33mm | 33mm | 33mm | |
| True RMS | YES | YES | YES | |
| AC current frequency response | 40Hz~ 400Hz | 40Hz~ 400Hz | 40Hz~ 400Hz | |
| AC voltage frequency response | 40Hz~ 400Hz | 40Hz~ 400Hz | 40Hz~ 1kHz | |
| 3-phase motor test | 600.0V | YES | YES | |
| Low pass filter | 1kHz, 3db attenuation | YES | ||
| Diode test | 6V/10V | YES | ||
| 3V | YES | YES | ||
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 bars | YES | — | YES |
| LCD display (HTN) | interface | Single | Single | Dual |
| Auto power off | YES | YES | YES | |
| Low battery indication | YES | YES | YES | |
| Data hold (H) | YES | YES | YES | |
| Relative mode (REL) | YES | YES | YES | |
| MAX/MIN | YES | YES | YES | |
| V+A dual display | YES | |||
| Function selection (SELECT) | YES | YES | YES | |
| Auto backlight | YES | YES | YES | |
| 2m drop test | YES | YES | YES | |
| Safety rating | IP54 | IP54 | IP54 | |
| Input impedance | ≥10MΩ | YES | YES | YES |
