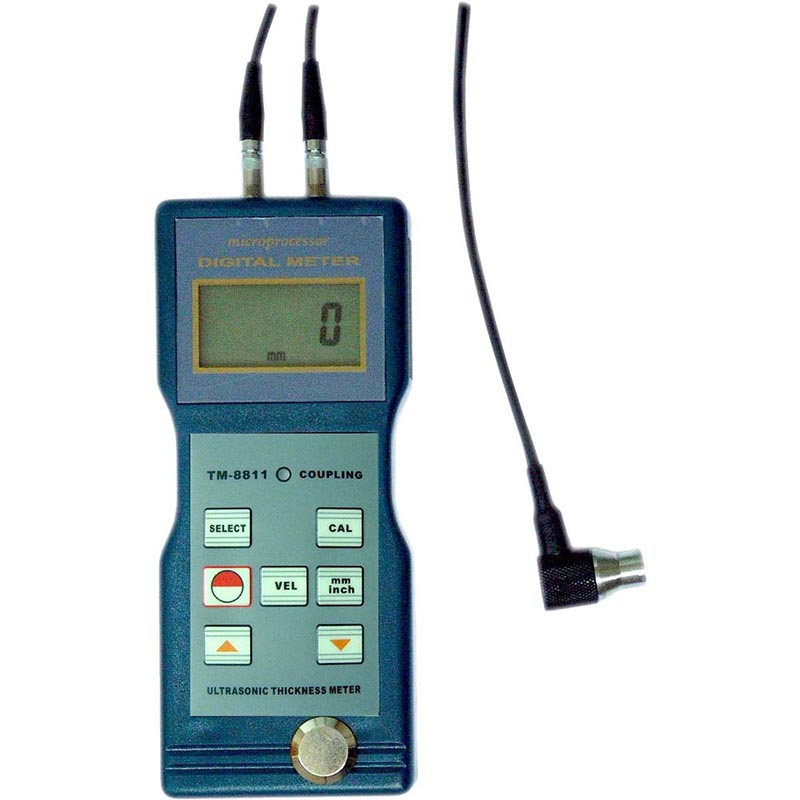

Ultrasonic thickness meter 1.2-200mm metal thickness guage
Features:
– High Accuracy with low cost
– Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
– Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy
measurement & fast measuring time.
– Automatic power off to conserve power.
– Low Power Indicator
Specification:
* Measuring range (metric/imperial): 1.2-200mm,0.06-8inch
* Operating principle: ULTROSONIC
* Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass,
zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
* Sound velocity: 500-9000m/s
* Lower limit steel pipes: ф15×2.0mm, ф20×3.0mm determined by the transducer
* Calibration block: included
* Resolution: 0.1mm
* Accuracy: ±(0.5%n+0.1)
* Power supply: 4×1.5V AA(UM-3)battery
* Battery indicator: low battery indicator
* Operating conditions:0-+45℃(32℉-104℉),≤90%RH
* Dimensions: 160x68x32mm
* Weight: 208g (not including battery)
* Optional Accessories:
6MФ6mm thin Material probe:Measuring range(steel): 1.0 50.0mm Operating temperature: -10~+60℃
5MФ12high temperature probe: Measuring range(steel): 1.0~225.0mm(normal temperature) Measuring range(steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300℃
| Display | LCD | |
| Sensor | Ultrasonic Probe | |
| Measuring Range | 1.5~200mm/0.06~8 inch | |
| Resolution | 0.1mm | |
| Accuracy | ±(0.5%n+0.2) | |
| Sound Velocity | 1000~9,000 m/s | |
| Lower Limit of Pipes |
Φ15×2.0mmΦ20×3.0
Determined By Transducer
|
|
|
Operating
Conditions
|
Temperature | 0~40ºC |
| Humidity | <85%RH | |
| Power Supply | 4×1.5V AA(UM-3)Battery | |
| Dimensions | 160x68x32mm | |
| Weight | 208g(Not Including Batteries) | |
Material Selection:
CD01 : Steel
CD02 : Cast Iron
CD03 : Aluminum
CD04 : Red Copper
CD05 : Brass
CD06 : Zinc
CD07 : Quartz Glass
CD08 : Polyethylene
CD09 : PVC
CD10 : Gray Cast Iron
CD11 : Nodular Cast Iron
XXXX : Sound Velocity
Package includes:
1. Main Unit
2. 5MФ8 Standard Sensor
3. Coupling Agent Bottle
4. Carrying Case
5. Operating Manual
Note: Not including any liquid (vaseline)
